Scene Director State Persistence

State Persistence lets Scene Director remember graph progress.

Use it when a scene should continue after save/load instead of starting again from the beginning.

Typical example:

an NPC scene is already running
the game is saved
later the game is loaded
Scene Director restores the saved progress and continues from that point

This guide explains:

what Scene Director actually remembers
graph asset settings that control capture and restore
how a graph resumes after load
how to save that state to a SaveGame slot or your own save system

What is actually saved

Only graph progress and node fields marked with SaveGame.

Important:

enable State Persistence on the graph asset
mark custom node fields with SaveGame if they must survive save/load
this does not replace your normal game save system

Built-in nodes that already persist resume-critical data include Random (prebaked sequence), Gate (open/closed), and For Each (Count) (current iteration).

Graph asset settings

When State Persistence → Enabled is on, three extra settings appear on the Action Graph asset.

Capture Policy

Controls when Scene Director writes a runtime snapshot.

On Abort (default) — capture only when the run is aborted.
On Node Transition — capture whenever a task finishes and flow moves on.
On Node Transition Or Abort — both of the above.
Never (Do Not Capture State) — do not store node/runtime snapshots.

Never is useful when you only want the auto-start signal (see below) without restoring node-level progress. With Never, the graph still starts from the beginning after load unless you handle resume yourself.

Completed Policy

Controls what happens to the snapshot after a normal graph finish (not abort).

Clear (default) — delete persisted state when the run completes successfully.
Keep In Memory — leave the last snapshot in memory. The next launch can restore it if Restore From State is enabled.

Auto Start On State Restore

When enabled, Scene Director automatically calls Run Scene Director after import/load for graphs that were running at save time.

Requirements and limits:

persistence must be enabled on the graph
not available for Single Runtime Participant graphs — they need an explicit actor binding at launch
if Capture Policy is Never, auto-start can still happen, but the graph begins from the start with no node snapshot

For manual control, leave this off and start graphs yourself with Restore From State = true. See Basic Usage.

On Restored

Place an On Restored control node anywhere in the graph.

It fires once when the run starts from a restored snapshot (after load/import or when Restore From State succeeds).
Use it for one-time setup that should not repeat on a fresh run — rebind UI, replay a short intro sting, refresh world props, etc.

It does not fire on a normal first launch with no saved state.

Clearing persisted state

From graph nodes

Abort — optional Clear Persisted State. When enabled, aborting also deletes this run's snapshot.
Stop Other Graphs — same optional flag for every run it stops.

From subsystem

ClearSceneDirectorStatesForGraph(Graph Class)
ClearAllSceneDirectorStates()

When stopping from code

Most stop functions accept Clear Persisted State.

When a higher-priority graph preempts a lower one

If the incoming graph has Clear Preempted Graph State enabled, stopped conflicting runs also lose their snapshots.

Export records and `Was Running At Save`

When you call ExportPersistedSceneDirectorStates, each record can include:

State — node snapshots and task SaveGame payloads
Was Running At Save — true if that graph had an active running instance at export time

Import uses Was Running At Save together with Auto Start On State Restore to decide which graphs should restart automatically.

Even when Capture Policy is Never, export can still emit a lightweight record with Was Running At Save = true so auto-start knows the graph was active — but without node-level restore data.

Action node authoring

If you only use built-in nodes, you can usually skip this section.

Scene Director gives custom nodes two useful hooks:

On Before Capture Persistent State

- Called right before state capture. - Use it to copy runtime progress into saved fields.

On Persistent State Restored

- Called after state restore. - Use it to rebuild anything that should exist again after load.

In Blueprint, implement these events directly. In C++, override the _Implementation methods.

For full authoring details, see Custom Action Node Authoring.

Example

UCLASS()
class UActionNode_MyWaitLike : public UActionNode
{
    GENERATED_BODY()

private:
    UPROPERTY(Transient, SaveGame)
    float RemainingSeconds = -1.0f;

    virtual void OnBeforeCapturePersistentState_Implementation() override
    {
        RemainingSeconds = /* snapshot runtime remaining time */;
    }

    virtual void OnPersistentStateRestored_Implementation() override
    {
        // optional fixup after load
    }
};

Two save approaches

You can use either approach, or both:

Built-in file save (simple): subsystem writes/reads a dedicated SaveGame slot.
Custom save system (flexible): subsystem exports/imports persistence data, and your project decides where/how to store it.

1) Built-in file persistence (SaveGame slot)

Use when you want a ready-to-use file save path without extra infrastructure.

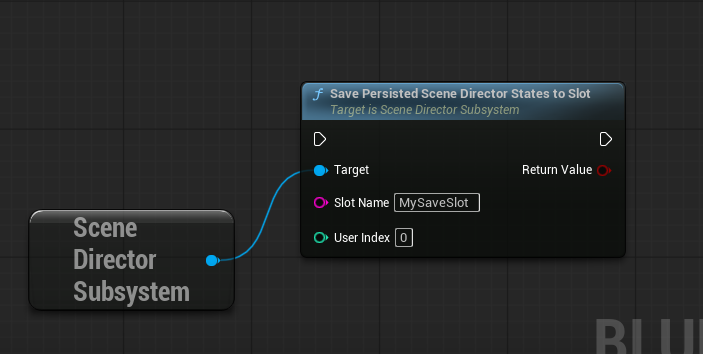

Save to file

Call on subsystem:

SavePersistedSceneDirectorStatesToSlot(SlotName, UserIndex)

Returns true on success.

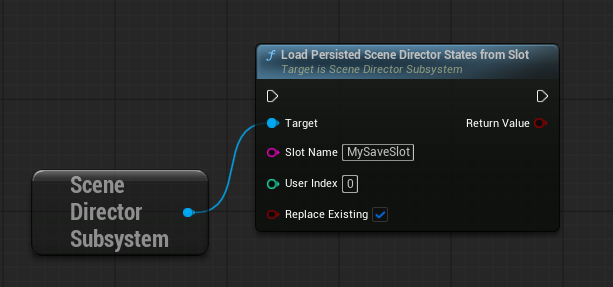

Load from file

Call on subsystem:

LoadPersistedSceneDirectorStatesFromSlot(SlotName, UserIndex, bReplaceExisting)

Usually, bReplaceExisting=true is the safest default.

After load, graphs with Auto Start On State Restore restart on their own. Others need a manual Run Scene Director with Restore From State = true.

Typical flow

World/game initializes.
Load Scene Director state from slot.
Make sure the required actors exist again.
For graphs without auto-start: call Run Scene Director with Restore From State = true.

2) Custom save system (your own files/back-end)

Use when you already have project-specific save architecture.

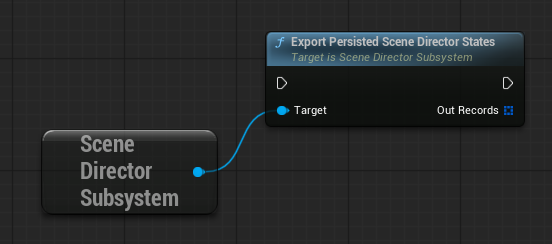

Export from subsystem

Call:

ExportPersistedSceneDirectorStates(OutRecords)

Then store the exported records in your own save system.

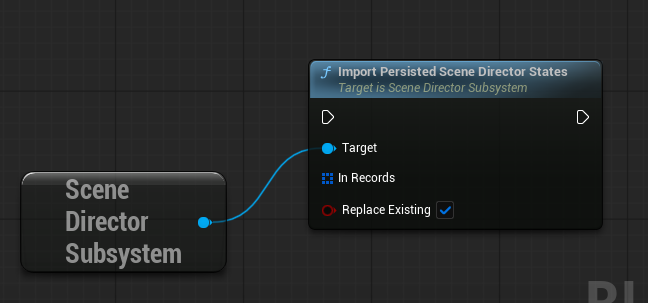

Import into subsystem
